At all times use good lighting - smart machine elements are small and you’ll want loads of gentle to see what you're doing.
- Maintain a clean, organized workspace so that you don’t lose or confuse any parts.
- Group your screws so you possibly can keep observe of the place they got here from. Most screws cannot be interchanged.
- Apply enough heat to loosen adhesive however not enough to damage the system.
- At any point throughout a restore, if the adhesive becomes arduous to separate, apply more heat.
- After separating adhesive, keep the housing and display screen in shut proximity till flex cable is disconnected.

Introduction

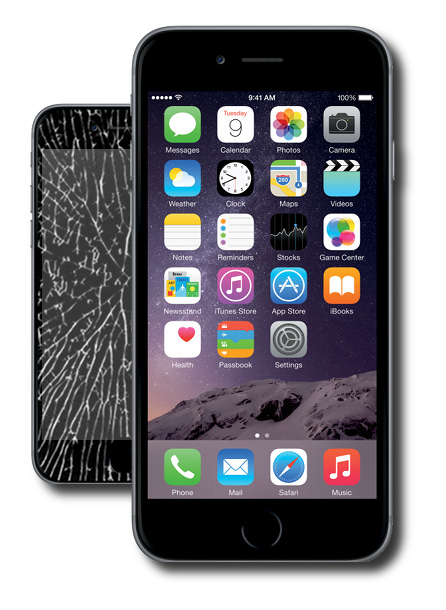

The iPhone 7 LCD screen meeting is reasonably difficult to remove. Several flex cables will be torn simply so use caution. Loosening the adhesive that retains the screen sealed to the physique requires correctly heating them with a dehydrator or heat gun. Let’s
get to it!

iPhone 7 LCD Meeting Removal Steps

Earlier than beginning, heat up the device’s interior adhesive strips with a dehydrator, heat gun, or heat mat. Heat guns are the quickest, however use warning as it can be simple to overdo it and harm the gadget.

Open the iPhone 7

1. Unscrew the two pentalobe screws on the underside edge of the phone on both facet of the lightning port.
2. Use the metallic spudger to slowly and punctiliously separate the display of the iPhone from the physique. Begin on the underside edge of the machine and proceed slowly.
3. Proceed using the metal spudger or use enjoying playing cards or guitar picks to gently separate the adhesive up the sides and high. Don’t push too deeply in direction of the middle of the system.
4. The left side of the display screen will open off the physique; like a guide opened from the again cover. The flex cable connecting the display screen to the battery will still be connected so open it rigorously.

1. A silver EMI shield on the mid-right aspect of the cellphone must be eliminated. It's held in place by 4 tri-level screws.
2. After eradicating the shield, use a spudger to disconnect the battery from the logic board.
3. Use the spudger to disconnect the display connector flex cable.
4. Remove the two Philips head screws on the shield over the front panel sensor assembly connector. It's the silver shield near the highest of the telephone with the flex cable coming out of the bottom.
5. With your spudger, disconnect the black front panel sensor assembly connector cable from the logic board. It is the one which connects the display to the body.
6. Now you can remove the LCD assembly of the iphone 6 lcd dipslay kit 7 from the physique.

1. Next, we are going to remove the three Phillips head screws that hold the silver earpiece bracket on the highest of the LCD meeting.
2. Pull the entrance digital camera up and out of the way with your spudger or tweezers. Take away the two Phillips head screws hooked up to the earpiece speaker. You can now additionally remove the earpiece speaker.
3. Use your spudger to take away the ambient mild sensor and proximity sensor. This is a thin cable that is straightforward to tear so use caution.

Remove the Contact ID/Residence Button

Be aware: The contact ID should be removed fastidiously. Failing to remove it safely or breaking it would require visiting an Apple store. The touch ID should be eliminated fastidiously. Failing to remove it safely or breaking it will require visiting an
Apple store.

1. Remove the four pentalobe screws holding the contact ID/home button bracket.
2. Work your way around the aspect brackets on the both sides of the assembly, unscrewing all 6 tri-level screws.

3. Peel the big LCD shield away, starting from the highest.
4. Use your spudger to disconnect the house button cable connector.
5. Disconnect the underlying connection with warning.
6. Pry the adhesive holding the touch ID/home button to the back of the digitizer.
7. The house button is now unattached and may be eliminated however pushing it ahead by way of the entrance of the display.
